Every cyclist knows the feeling of a perfectly tuned machine: crisp shifting, silent braking, and a frame that responds instantly to every pedal stroke. Behind that performance are precision-machined components that must be lightweight, stiff, and durable. From the bottom bracket to the brake caliper, bicycle CNC parts are the backbone of modern cycling. China has become a major source of precision machined bike components, supplying global brands like Trek, Specialized, Giant, Cannondale, and countless aftermarket parts manufacturers. This guide explores the critical CNC machined parts for high-end bicycles and e-bikes: frame machining (head tubes, bottom bracket shells, dropouts), drivetrain components (cranksets, chainrings, derailleur cages), disc brake calipers and rotors, hubs and axles, stems and handlebars. It covers material selection for lightweighting and strength (7075-T6 aluminum, titanium Grade 5, 6061 aluminum, carbon fiber composite), surface finishing (anodizing, bead blasting, polishing), tolerance strategies for smooth shifting and brake modulation (0.01mm on pivot bores), and sourcing from Chinese manufacturers with ISO 9001 and often IATF 16949 for high-quality, cost-effective production for performance cycling, mountain biking, gravel, and e-bike applications.
Bicycle components must balance weight, stiffness, and durability. A gram saved on rotating parts can make a noticeable difference in acceleration and climbing.
Lightweighting. Aluminum alloys (7075-T6, 6061-T6) and titanium are common. Machining removes excess material while maintaining structural integrity. Thin-wall structures (1-2mm) are typical for handlebars and seat posts.
Stiffness for power transfer. Bottom brackets and cranksets must resist flex under pedaling loads. Forged or billet aluminum is machined with thick cross-sections at the pedal spindle area.
Precision for shifting and braking. Derailleur pivot holes, brake caliper piston bores, and cable routing grooves require tolerances of ±0.01mm to ensure smooth operation. Surface finishes on piston bores (brake calipers) are Ra 0.4μm for seal longevity.
Corrosion resistance. Bicycles are exposed to rain, sweat, and road salt. Anodizing (Type II or III) is standard for aluminum; titanium is naturally corrosion-resistant; stainless steel is used for bolts and bearing races.
High-volume aftermarket and OEM. Popular models sell in the tens of thousands. Chinese CNC shops with automated production lines and in-house anodizing are competitive.
Chinese CNC shops serving the bicycle industry typically have ISO 9001, 4- and 5-axis machining centers, Swiss-type lathes for small parts, in-house anodizing or powder coating, and CMM inspection. Major clusters: Guangdong (Shenzhen, Dongguan, Zhongshan) – bicycle and e-bike hub; Zhejiang (Hangzhou, Ningbo) – components; Jiangsu (Suzhou, Kunshan) – high-end carbon and alloy frames.
Modern bicycle frames are often made from aluminum, titanium, or carbon fiber. For aluminum and titanium frames, the key machined features are the head tube, bottom bracket shell, and dropouts. Bike frame machining is typically done on large 3-axis or 5-axis mills.
Head tube – the cylindrical tube at the front of the frame that holds the fork steerer. Machined from a forged or extruded blank. Features: internal bore (for headset bearings) with precision H7 or H8 tolerance (e.g., 44mm +0.025/+0.000), bearing race seats (often 45° chamfered), and cable routing holes. Tolerances: bore concentricity<0.05mm, surface finish Ra 0.8μm.
Bottom bracket shell – the cylindrical housing for the bottom bracket bearings. Common standards: BSA (threaded, 1.37" x 24 TPI), PF30, BB86/BB92 (press-fit). Machining: threading for BSA (class 2A/2B) or precise bore for press-fit (H7). Threads are cut with CNC lathes or taps. Press-fit bores require roundness<0.005mm.
Dropouts – the fork ends and rear dropouts that hold the wheel axles. Machined from aluminum or steel plate. Features: axle slots (10mm or 12mm diameter) with flat faces for quick-release or thru-axle alignment. Tolerances: slot width ±0.05mm, face flatness 0.05mm.
After machining, frame parts are welded to tubes, then heat-treated (age-hardening for 6061/7075) and final machined (e.g., facing bottom bracket shell faces). Chinese frame manufacturers often use robotic welding and then post-weld machining.
The drivetrain converts pedal power into forward motion. Bicycle crankset and shifting components are precision-machined.
Crank arms – typically forged 7075-T6 aluminum or forged steel. After forging, the crank arm is CNC machined for: pedal threads (9/16" x 20 TPI, RH/LH), bottom bracket interface (square taper or spline), and weight-reducing pockets. Tolerances: pedal thread class 2B, spindle bore concentricity<0.01mm. Surface finish: polished or bead-blasted and anodized.
Chainrings – circular plates with teeth for the chain. Machined from 7075-T6 aluminum plate. CNC milling of tooth profile (precision to ±0.02mm), shifting ramps, and inner/outer cutouts. After machining, chainrings are anodized (black, silver, or custom colors). Chinese chainring manufacturers (e.g., ZTTO, Sunshine) supply aftermarket and OEM.
Derailleur cages and pulleys – the cage plates (front and rear derailleurs) are machined from aluminum or carbon-reinforced composite, with precise pivot holes for smooth articulation. Pulley wheels are turned from aluminum or plastic (Delrin) with bearing bores (H7). Tolerances: pivot hole positions ±0.01mm, pulley bore concentricity 0.01mm.
Cassette sprockets – steel or aluminum sprockets with machined teeth (tolerance ±0.03mm). Chinese cassette manufacturers (e.g., ZTTO, LTWOO) offer competitive products.

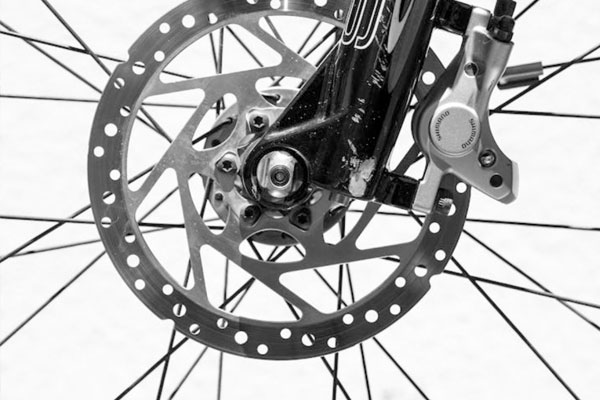

Disc brakes are standard on mountain bikes, gravel bikes, and many road bikes. Bicycle disc brake calipers are machined from forged or billet aluminum (6061 or 7075).
Calipers – consist of two halves (or one-piece) with piston bores (often 4 pistons for MTB). Machining features:
Piston bores: H7 tolerance (e.g., 22mm +0.021/+0.000), surface finish Ra 0.4μm (hone or burnish).
Fluid passages: cross-drilled and deburred.
Threads for banjo bolts (M10x1.0) and bleed screws.
Pad slots and alignment pins.
After machining, calipers are anodized (Type III hard anodized for wear) and assembled with pistons, seals, and pads. Chinese brake manufacturers (e.g., Shimano, SRAM have Chinese suppliers, and aftermarket brands like Zoom, Kuke) produce millions of calipers.
Brake rotors – made from stainless steel (420 or 410) or cast iron. Laser-cut or stamped from sheet, then ground flat (flatness<0.05mm) and drilled/slotted for cooling. The center carrier (if floating) is machined from aluminum. Chinese rotor manufacturers supply to many brands.
Wheel hubs are the central part of the wheel, containing bearings and the freehub body. CNC wheel hubs are machined from forged or billet aluminum (6061, 7075) or carbon.
Hub body – machined on CNC lathes: bearing bores (H7, Ra 0.4μm), flange for spokes (drilled holes), and freehub engagement spline. Tolerances: bearing bore positions ±0.02mm, spoke hole angles ±0.5°. After machining, hubs are anodized (black or custom colors).
Freehub body – the ratchet mechanism that allows freewheeling. Machined from steel or aluminum, with precision splines for cassette mounting (Shimano HG, SRAM XD, etc.). Spline profile tolerance ±0.03mm. Chinese hub manufacturers (e.g., Bitex, Novatec, DT Swiss suppliers) are major players.
Thru-axles and quick-release skewers – machined from stainless steel or titanium. Threads (M12x1.0, M12x1.5) are rolled or cut, with hex or cam ends. Tolerances: class 6g for threads.
These cockpit components are CNC machined for precision fit and weight reduction.
Stems – connect the handlebar to the steerer. Machined from forged or billet 6061/7075 aluminum. Features: clamp bores (for handlebar and steerer), bolt holes (often M5 or M6), and weight-saving pockets. Clamp bores are machined to precise diameters (e.g., 31.8mm +0.05/-0.00) with surface finish Ra 0.8μm.
Handlebars – often carbon composite, but aluminum handlebars (6061 or 7075) are machined from tube: cutouts for internal cable routing, clamp areas, and lever mounts. Machining is done on CNC mills with custom fixtures.
Seat posts – machined from aluminum or carbon. The clamp head (for saddle rails) is CNC machined from billet, with threaded holes and clamping mechanisms. Tolerance: rail slot widths ±0.05mm.
Aluminum 7075-T6: Highest strength, used for cranksets, chainrings, stems, and high-end hubs. Excellent machinability, anodizable.
Aluminum 6061-T6: General-purpose, used for frame parts, lower-cost components. Good machinability.
Titanium Grade 5 (Ti-6Al-4V): Used for high-end bolts, axles, and lightweight stems. Corrosion-resistant, high strength, but expensive and harder to machine.
Stainless steel 303/304/316: Brake rotors, bolts, bearing races. 303 for machined fittings.
Carbon fiber composites: Frame tubes and some components (carbon layup, not CNC machined extensively, but machining of carbon parts requires diamond tooling).
Plastics (Delrin/POM, Nylon): Derailleur pulleys, cable guides, bushing.
Surface finishes:
Anodizing (Type II, Type III): Standard for aluminum parts. Type III hard anodizing for wear surfaces (brake calipers, chainring teeth). Colors: black, gold, red, blue.
Bead blasting: Produces a matte, uniform finish before anodizing.
Polishing: High-gloss finish, often clear anodized after.
Powder coating: For frames and some larger parts.
Passivation: For stainless steel parts to remove free iron.
Specify: "Crankset: 7075-T6 aluminum, bead-blasted, Type II black anodized, 10-15μm thickness."
Bicycle parts require precision and durability. QC includes:
CMM or vision measurement for complex parts (chainrings, cranksets).
Thread gauges for pedal threads and bottom bracket threads.
Surface finish measurement (profilometer) for brake caliper piston bores.
Hardness testing (Rockwell) for aluminum heat-treated parts.
Anodizing thickness and adhesion (eddy current, cross-hatch).
Torque testing for bolts and assembled components.
Runout and balance for wheels and hubs.
Chinese suppliers provide FAIR, material certifications, and anodizing reports.
Step 1: Verify bicycle industry experience. Ask for references from brands or aftermarket suppliers. Examples of cranksets, calipers, or hubs.
Step 2: Check material handling. Can they machine 7075 aluminum, titanium, and stainless? Do they have in-house heat treatment and anodizing?
Step 3: Evaluate precision capability. Tolerances to ±0.01mm on bores and threads. CMM and roundness measurement.
Step 4: Assess surface finishing. In-house anodizing with color matching? Bead blasting and polishing?
Step 5: Order a trial part – e.g., a chainring or a brake caliper. Inspect dimensions, finish, and thread quality.
Major clusters: Guangdong (Shenzhen, Dongguan) – component hub; Zhejiang (Ningbo) – high-end parts; Jiangsu (Suzhou) – carbon and alloy frames.
Bicycle components are produced in medium to high volumes (1,000-100,000 units/year). Pricing benchmarks:
Aluminum chainring (7075, 44T, anodized): $2-5 (OEM quantities)
Crankset (left+right, 7075 forged, machined): $10-20
Disc brake caliper (billet, 4-piston, anodized, assembled): $8-15
Wheel hub (aluminum, CNC, anodized, with bearings): $5-10
Stem (6061, machined, anodized): $2-4
Lead times: For existing designs, 3-4 weeks for first article, 2-4 weeks production. Anodizing adds 1 week. Shipping: sea 30-45 days, air 3-7 days.
MOQ: For custom chainrings, 500-1,000 pieces; for cranksets, 200-500 pieces; for prototypes (10-50 pieces), higher unit cost.
Anodizing color mismatch between batches. Prevention: provide a color standard (RAL or Pantone) and require batch consistency report. Use same anodizing tank for matching sets.
Thread galling on aluminum pedal threads. Prevention: specify anti-seize coating or use steel thread inserts. For aluminum cranks, steel pedal inserts are recommended.
Brake caliper piston bore out-of-round causing seal leak. Prevention: specify roundness 0.005mm and hone after machining. Leak test each caliper.
Chainring tooth profile mismatch causing poor shifting. Prevention: use standard tooth profile (e.g., Shimano HG, SRAM X-SYNC) and inspect with profile projector.
Incorrect bottom bracket thread fit. Prevention: specify class 2B for BSA threads and use GO/NOGO gauges. For press-fit, specify H7 and measure bore diameter.
E-bike drivetrain components. Heavier-duty chainrings and motor mounts for higher torque. Machining of aluminum motor housings.
Wireless shifting and electronic integration. Machined recesses for batteries and circuit boards in derailleurs and shifters.
3D printed titanium parts. Custom stems, seatpost clamps, and lightweight bolts.
Additive manufacturing for lattice structures. 3D printed titanium or aluminum with lattice core for weight reduction, then CNC finishing of mounting surfaces.
Sustainable coatings. Non-hexavalent anodizing and water-based paints.
High-performance bicycles depend on precision-machined components that are lightweight, stiff, and reliable. China's CNC machining industry produces bicycle CNC parts – from frame parts and drivetrain components to brake calipers and hubs – that meet the demands of global cycling brands and aftermarket enthusiasts. By selecting suppliers with precision milling, anodizing, and quality control, you can source high-quality precision machined bike components for road, mountain, gravel, and e-bikes.
Ready to source precision CNC machined bicycle components from China? Send us your drawings and volume estimates. We'll connect you with manufacturers experienced in cranksets, calipers, hubs, and more. Free DFM feedback and quoting available.
A: 7075-T6 is the standard for high-performance cranksets due to its high strength-to-weight ratio. 6061 is used for lower-cost cranksets. Forged 7075 is then CNC machined.
A: Yes, many specialize in titanium. Ti-6Al-4V Grade 5 is common. Requires carbide tooling, low speeds, and rigid machines. Ask for sample parts and surface finish measurements (Ra 0.8μm typical).
A: Ra 0.4μm or better, with roundness<0.005mm. This ensures proper seal operation and prevents leakage. Chinese brake component suppliers use honing or burnishing to achieve this.
A: Many larger suppliers are ISO 9001 certified. Some supplying to major brands (e.g., Shimano suppliers) also hold IATF 16949 for automotive-grade quality systems.
A: For a new tooth design, tooling (fixtures, program) 2-3 weeks, then 3-4 weeks for production. Anodizing adds 1 week. Total 6-8 weeks.
A: Some manufacturers (e.g., LTWOO, Sensah) produce complete groupsets. They have CNC machining for alloy parts and assembly lines. Others supply only components.
A: BB86 bore is typically 41mm +0.025/+0.000 (H7) with roundness<0.005mm. Chinese frame and component shops can achieve these tolerances.
A: Yes, experienced suppliers can match RAL or Pantone colors. Provide a physical sample for best results. Anodizing color consistency is critical for visible parts like cranksets and stems.
