Modern agriculture relies on powerful, durable machinery to plant, cultivate, and harvest crops efficiently. Tractors, combines, planters, and irrigation systems work long hours in dusty, muddy, and abrasive conditions. The agricultural machinery parts that make up these machines must withstand impact from rocks, corrosion from fertilizers, and wear from soil abrasion. China is a major manufacturer of farm equipment, producing brands like YTO, Lovol, and Zoomlion, and also supplying tractor components and harvester parts to global giants John Deere, CNH Industrial, AGCO, and Kubota. This guide explores the critical CNC machined parts for agricultural machinery: tractor transmission shafts and gears, harvester cutterbars and knife sections, planter seed discs and row units, hydraulic cylinder components, and irrigation system parts (sprinkler heads, valve bodies). It covers material selection for abrasion and corrosion (boron steel, Hardox wear plate, stainless steel 316L, bronze), heat treatment for wear resistance (carburizing, induction hardening, through-hardening), tolerance strategies for field replaceability and bolt-on fits, surface protection (zinc plating, powder coating, hard chrome, phosphate coating), and sourcing from Chinese manufacturers with ISO 9001 and often IATF 16949 for high-volume, cost-effective production.
Farm equipment operates in harsh environments: soil, dust, moisture, chemicals, and extreme temperature variations. Components must be robust and easy to service.
Abrasion resistance. Parts that contact soil (plow shares, cultivator sweeps, disc blades) are made from high-carbon or boron steel (e.g., 30MnB5, 27MnCrB5) heat-treated to 40-55 HRC. Machining these hard materials requires carbide tools and slow speeds.
Corrosion from fertilizers and manure. Fertilizers (nitrogen, phosphorus, potassium) are corrosive. Components exposed to them (spreader discs, injector nozzles) are often made from stainless steel 316L or heavily zinc-plated/painted.
High torque and fatigue. Tractor transmission shafts and gears experience millions of load cycles. They are machined from case-hardening steel (8620, 16MnCr5) carburized to 58-62 HRC on teeth and journals.
Serviceability and field replacement. Many parts (planter discs, harvester knives, cultivator points) are designed to be replaced in the field. Bolt hole patterns must be accurate (±0.3mm) to fit standard mounting brackets.
High volume, cost sensitivity. Agricultural parts are produced in high volumes (10,000-1,000,000 units/year). Chinese shops use multi-spindle lathes, transfer lines, and automated inspection to keep costs low.
Chinese CNC shops serving agriculture typically have ISO 9001, large-capacity lathes and mills for shafts and housings, induction hardening, carburizing furnaces, and in-house zinc plating or powder coating. Major clusters: Shandong (Weifang, Linyi) – tractor and combine hub; Henan (Luoyang) – YTO; Jiangsu (Changzhou, Yancheng); Heilongjiang – large agricultural machinery.
The transmission is the heart of a tractor, transferring power from the engine to the wheels. Tractor components in the driveline are precision-machined for durability and smooth shifting.
Transmission shafts – long, stepped shafts with bearing journals, splines, and gear seats. Machined from 8620 or 20MnCr5 steel. Process:
Turn on CNC lathe, leaving grinding allowance.
Cut splines (rolling or hobbing).
Carburize to 58-62 HRC on gear seats and splines (core 30-40 HRC).
Grind bearing journals (h6 or h7, Ra 0.4μm).
Grind gear seats (if required) and spline OD.
Inspect with CMM and magnetic particle (MT) for cracks.
Tolerances for a transmission shaft (80mm dia x 500mm length):
Bearing journal diameter: h6 (e.g., 80mm -0.013/-0.022).
Spline runout to journals: 0.03mm TIR.
Straightness: 0.05mm over length.
Surface finish (journals): Ra 0.4μm (ground).
Case depth: 1.5-2.5mm.
Transmission gears – helical or spur gears, hobbed or shaped, then carburized and ground on teeth. Gear quality AGMA 10-12. Chinese gear manufacturers supply to many tractor OEMs.
Transmission housings – cast iron (HT250) or aluminum, machined on horizontal boring mills. Bearing bores H7, flange faces flat to 0.05mm.
Combine harvesters and forage harvesters use cutterbars with reciprocating knife sections to cut crops. Harvester parts are high-wear, high-volume components.
Knife sections (sickle sections) – triangular steel blades with serrated edges. Stamped or machined from 1070 spring steel or 30MnB5, heat-treated to 45-50 HRC. They are drilled with mounting holes (position tolerance ±0.2mm). After heat treat, edges may be honed or coated with tungsten carbide hardfacing.
Knife heads (sickle bars) – long steel bars (up to 6m) with precisely punched holes for mounting knife sections. Hole spacing tolerance ±0.1mm over full length. Chinese shops use CNC punching or drilling with indexing.
Guards and hold-downs – steel castings or machined plates that guide the knife. Machining includes drilling and tapping for bolts. Tolerances: ±0.3mm for hole positions.
These parts are produced in millions annually. Chinese suppliers often supply complete cutterbar assemblies.

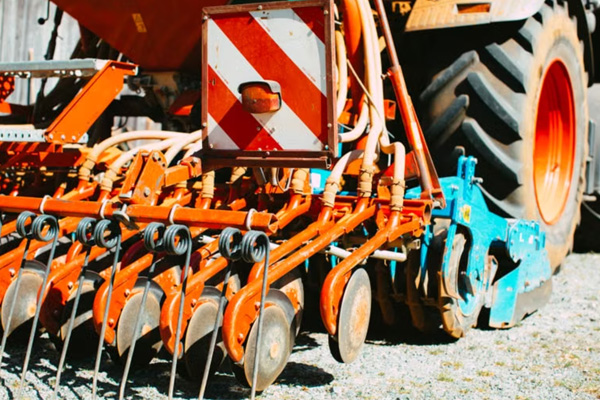

Planters place seeds at precise spacing and depth. Planter components include seed discs, double-disc openers, and seed metering rollers.
Seed discs – flat discs (150-300mm diameter) with pockets or holes for seed singulation. Machined from acetal (POM) or aluminum 6061. For plastic discs, CNC milling with sharp tools at high speeds. Pocket depth tolerance ±0.02mm, position tolerance ±0.05mm. After machining, discs are cleaned and sometimes coated with anti-static material.
Double-disc openers – steel discs (often Hardox 400) with a beveled edge, heat-treated to 45-50 HRC. The center bore and mounting holes are CNC machined. Flatness<0.1mm.
Metering rollers and singulators – small precision parts from aluminum or plastic, with teeth or grooves for seed singulation. Tolerances: ±0.01mm on tooth profiles. Chinese planter parts suppliers provide complete row units.
Hydraulics power lift arms, steering, and implement control. Hydraulic components for agriculture are similar to industrial cylinders but with additional corrosion protection.
Piston rods – induction-hardened 4140 or 1045 steel, hard chrome plated (0.02-0.05mm), ground to h7, Ra 0.2-0.4μm. Often zinc-nickel plated for fertilizer resistance.
Cylinder barrels – seamless steel tube (1026, 4130) honed to H8/H9 with cross-hatch. End flanges are welded and machined.
Pistons and glands – ductile iron or steel, with O-ring grooves (tolerance ±0.05mm).
Chinese cylinder suppliers offer complete cylinders with seals and testing.
Irrigation systems are vital for crop growth. Irrigation parts include sprinkler heads, valves, and fittings.
Sprinkler heads – brass or stainless steel (316L) bodies with precision-machined nozzles and threads. CNC turning with live tooling for cross-holes. Threads: NPT or BSP, class 2. Nozzle diameter tolerance ±0.01mm.
Valve bodies – brass or stainless, machined with O-ring grooves and threaded ports. Leak testing (air or water) at 150 psi.
Couplings and adapters – aluminum or brass, turned and threaded.
Chinese irrigation component suppliers export widely, especially to arid regions.
Ground-engaging wear parts are designed to be replaced regularly. They are machined from high-hardness steel and often hardfaced.
Plow shares – formed from Hardox 450 or 500, with bolt holes drilled (position tolerance ±0.5mm). Cutting edge may be ground.
Cultivator sweeps – V-shaped blades from boron steel, heat-treated to 45-50 HRC. Holes for mounting bolts.
Disc blades – concave discs (18-32 inches) from high-carbon steel, heat-treated, then center bore and bolt holes machined. Flatness<0.5mm.
Chinese wear part suppliers often offer hardfacing (tungsten carbide weld overlay) as an option.
Boron steel (30MnB5, 27MnCrB5): Plow shares, cultivator sweeps, disc blades. Through-hardened to 40-55 HRC. Machinable in soft state before heat treat.
Case-hardening steel (8620, 16MnCr5, 20MnCr5): Transmission gears, shafts. Carburized to 58-62 HRC.
Carbon steel (1045, 1070): Knife sections, general shafts. Heat-treated to 45-50 HRC.
Stainless steel 316L: Irrigation components, fertilizer spreaders. Excellent corrosion resistance.
Aluminum 6061: Planter seed discs, lightweight brackets. Anodized.
Acetal (POM): Seed discs, bushings. Machined with sharp tools.
Bronze (C93200): Bushings, wear pads.
Surface treatments:
Zinc plating (yellow/clear): For brackets, small steel parts (72-240 hours salt spray).
Zinc-nickel plating: For hydraulic components and fertilizer-exposed parts (500+ hours).
Powder coating: For frames, housings, and large components (thickness 60-120μm).
Hard chrome plating: For piston rods and hydraulic shafts.
Phosphate coating: For gears and shafts (oil retention).
Tungsten carbide hardfacing: For plow shares and cultivator sweeps (extreme abrasion).
Specify: 'Plow share: 30MnB5, heat-treated 48-52 HRC, tungsten carbide hardfacing on leading edge 3mm thick, bolt holes drilled to pattern A.'
Agricultural parts require hardness, wear resistance, and dimensional accuracy:
Hardness testing: Rockwell or Brinell for heat-treated parts.
Case depth measurement: Microhardness traverse for carburized parts.
CMM: For transmission shafts and complex housings.
Hardfacing inspection: Thickness and hardness of weld overlay.
Salt spray testing: For plated and painted parts (48-500 hours).
Material certifications: MTRs with heat numbers.
Chinese suppliers provide FAIR and hardness reports.
Step 1: Verify agricultural experience. Ask for references from tractor or harvester OEMs.
Step 2: Check heat treatment and hardfacing. In-house carburizing, induction hardening, or hardfacing? For wear parts, this is critical.
Step 3: Evaluate high-volume capability. Multi-spindle lathes, transfer lines, automated inspection for high-volume parts.
Step 4: Assess coating and plating. In-house zinc plating or powder coating? For fertilizer-exposed parts, zinc-nickel is preferred.
Step 5: Order a trial – e.g., a plow share or a seed disc. Verify hardness, dimensions, and coating.
Major clusters: Shandong (Weifang, Linyi), Henan (Luoyang), Jiangsu.
Agricultural parts are high-volume, cost-sensitive. Pricing benchmarks (10,000+ pieces/year):
Transmission shaft (80mm x 500mm, carburized, ground): $15-25
Harvester knife section (stamped, heat-treated): $0.50-1.50
Planter seed disc (aluminum, machined): $2-4
Hydraulic piston rod (50mm x 800mm, hard chrome, ground): $10-18
Plow share (Hardox, drilled, hardfaced): $8-15
Lead times: For existing designs, 3-4 weeks first article, 2-4 weeks production. Heat treatment and coating add 1-2 weeks. Shipping: sea 30-45 days, air 3-7 days.
MOQ: For wear parts, 1,000-5,000 pieces; for shafts, 500-2,000 pieces.
Inconsistent hardness on wear parts causing rapid failure. Prevention: specify hardness range and require Rockwell test report on each batch.
Bolt hole pattern mismatch – field assembly problem. Prevention: use CNC drilling with fixture; inspect with template gauge.
Corrosion on zinc-plated parts in fertilizer service. Prevention: upgrade to zinc-nickel or powder coating. Specify salt spray test (e.g., 500 hours).
Insufficient case depth on transmission gears – early pitting. Prevention: specify case depth and hardness; require microhardness traverse.
Warped disc blades after heat treatment. Prevention: use press quenching or clamp during heat treat. Specify flatness after treatment.
Precision farming (variable rate technology). More precise metering components for seed and fertilizer, requiring tighter tolerances.
Electric and autonomous tractors. New electric drive components (motor housings, battery enclosures) requiring aluminum machining.
Additive manufacturing for wear parts. 3D printed tungsten carbide inserts for plow shares.
Smart sensors. Machined recesses for soil sensors and cameras on planters.
Sustainable coatings. Water-based paints and non-hexavalent zinc plating.
Agricultural machinery relies on durable, wear-resistant parts that can be replaced in the field. China's CNC machining industry produces agricultural machinery parts – from tractor shafts and harvester knives to planter discs and hydraulic cylinders – that meet the demands of global agriculture. By selecting suppliers with heat treatment, hardfacing, and robust coating capabilities, you can source reliable components for the machines that feed the world.
Ready to source precision CNC machined agricultural components from China? Send us your drawings and volume estimates. We'll connect you with manufacturers experienced in tractor, harvester, and planter parts. Free DFM feedback and quoting available.
A: Boron steel (30MnB5) heat-treated to 48-52 HRC, with tungsten carbide hardfacing on the leading edge. This provides the best wear resistance.
A: Yes, with carbide tooling and lower speeds. They often use plasma or laser cutting for the disc shape, then CNC turn the center bore and drill bolt holes.
A: Ra 0.4μm (ground). This ensures smooth bearing rotation and long life. Chinese suppliers use cylindrical grinders to achieve this.
A: Some do, including seed discs, openers, and mounting brackets. They can supply painted and assembled row units ready for installation.
A: For custom gears requiring hobbing and grinding, 6-8 weeks for first article, then 4-6 weeks for production. New hob tooling adds 4-6 weeks.
A: Yes, many offer robotic or manual hardfacing. Specify weld overlay thickness (e.g., 3-5mm) and pattern (e.g., stripes or full coverage).
A: 45-50 HRC for steel sections. Some advanced sections use carbide inserts for extreme wear.
A: Most are ISO 9001; some larger suppliers also hold IATF 16949 for tractor components. Ask for certificate and scope.
Ready to source durable agricultural components from China? Contact our engineering team with your CAD files. We'll match you with qualified suppliers that have proven experience in tractor, harvester, and planter parts. Free consultation and sample support.
