Every day, billions of people step into elevators and onto escalators in office towers, airports, shopping malls, and subway stations. These vertical transportation systems operate continuously, often 24/7, with minimal downtime. The components that make them move – guide rails, car frames, door drives, traction machines, handrail drives – must be manufactured with extreme precision and durability. A misaligned door can cause constant breakdowns; a worn escalator step chain can lead to catastrophic failure. China is the world's largest market for elevators and escalators, producing over 1 million units annually, and is home to major OEMs like Otis, KONE, Schindler, ThyssenKrupp, as well as domestic giants such as Canny Elevator, SJEC, and Meilun. The country has built a deep supply chain of elevator components and escalator parts, supplying precision CNC machined parts OEM to the global industry. This guide explores the critical machined components for lifts and escalators: car frames, door panels and operators, guide rail brackets, traction machine parts (shafts, housings, sheaves), escalator step chains, handrail drives, and safety devices (governors, buffers, safety gears). It covers material selection for strength and wear (structural steel, aluminum, bronze, nylon), surface finishing for corrosion protection (zinc plating, powder coating, anodizing), tolerance strategies for sliding fits and rotating bearings, and practical sourcing advice from Chinese manufacturers.
Elevator components are safety-critical. A failure can cause injury or death. Machining must follow strict national and international codes (EN 81, ASME A17.1).
Safety margins are built into every part. Elevator car frames, safety gears, and overspeed governors must withstand forces several times the rated load. Machining defects (cracks, wrong tolerances) are unacceptable.
Smooth, quiet operation is expected. Guide rail brackets and rollers must be aligned to within 1mm over 3m. Door drives must open and close smoothly tens of thousands of cycles.
Corrosion resistance. Elevator parts in basements or exposed to weather (external lifts) require zinc plating, powder coating, or stainless steel.
High wear resistance for moving parts. Escalator step chains, handrail drives, and roller guides experience constant friction. Materials like bronze and hardened steel are used, with precise oil groove machining.
Large, heavy components. Car frames and counterweights are large weldments that require heavy-duty machining (large boring mills, horizontal lathes).
Chinese CNC shops serving the elevator industry typically hold ISO 9001 and may have welding certifications (EN 1090, AWS). Major clusters: Zhejiang (Huzhou, Suzhou – actually Suzhou is in Jiangsu), Jiangsu (Suzhou, Wuxi, Changzhou), Shanghai, and Guangdong (Guangzhou, Shenzhen).
The elevator car frame (or sling) is the structural skeleton that holds the car platform and guides it along the rails. It is typically fabricated from steel sections (U-channels, I-beams) and then machined on critical surfaces.
Machined features on a car frame:
Guide rail shoe mounting pads – milled flat and parallel (tolerance 0.5mm over 1m).
Bracket holes for roller guides – drilled and tapped, position ±0.5mm.
Safety gear mounting surfaces – milled flat (0.2mm).
Counterweight hitch plate – drilled and reamed for hitch bolts.
Chinese fabricators with large milling machines (travel >5m) and welding robots produce car frames to OEM specifications. After welding, frames are stress-relieved (heat treatment) before final machining to prevent distortion.
Guide rails are cold-rolled steel profiles (T-rail shape). Guide rail brackets are machined from steel plate or cast iron. They hold the rails to the building structure. Brackets require:
Slot milling for adjustability (tolerance ±0.3mm).
Drilling and tapping for rail clips.
Surface zinc plating or powder coating for corrosion protection.
High-rise elevators use precision-machined rail brackets with shim adjustment holes.
Automatic elevator doors open and close thousands of times per year. Door drive systems consist of a motor, gearbox, belts/pulleys, and linkages. Machined parts include:
Door hanger brackets – milled aluminum or steel, with precision bores for rollers (H7).
Door coupler – connects the door panel to the drive belt; machined with teeth or clamp slots.
Door guide shoes – bronze or nylon blocks, milled to slide in the sill track (clearance 0.5-1.0mm).
Lock and clutch components – small precision stainless steel parts for mechanical interlocks.
Typical tolerances for door hanger rollers: bore H7, outer diameter h7, concentricity 0.1mm.
Chinese door component suppliers often provide complete door operator assemblies, including CNC-machined aluminum extrusions for door panels (with cutouts for vision panels, handles, and interlock mechanisms).
The traction machine (motor) drives the elevator ropes. Modern gearless machines use a permanent magnet motor with a large-diameter drive sheave. Traction machine parts are high-precision components.
The sheave (pulley) has rope grooves (U-shaped or undercut) that must be precisely machined to ensure even rope wear and traction. Cast iron or steel sheaves are turned on CNC lathes, then the grooves are cut with a form tool. Groove spacing tolerance: ±0.1mm; groove depth: ±0.05mm. After machining, sheaves are dynamically balanced (G6.3 grade).
Traction machine brakes are electromagnetic. Machined parts include:
Brake discs (steel, ground flat to 0.02mm).
Brake caliper housings (cast iron or aluminum, machined for piston bores and pads).
Brake arm linkages (steel, milled and drilled).
Brake components must be magnetic particle inspected (MT) for cracks. Chinese machine shops with ISO 9001 and in-house MT offer these services.
Gearless machine shafts are large-diameter (50-150mm) steel, turned to h6/h7 tolerance, ground on bearing journals (Ra 0.4μm). Bearing housings (cast or machined aluminum/steel) have H7 bores for precision bearings. Chinese suppliers often assemble the complete traction machine.

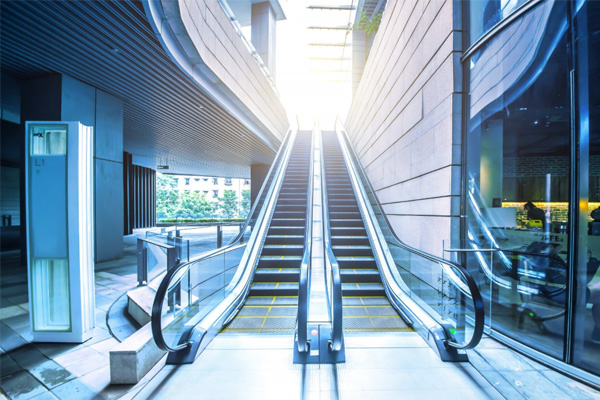

Escalators are continuous moving stairs. Escalator parts must endure high cycles and abrasive dirt.
The step chain is a heavy roller chain that drives the steps. Step chain links and pins are machined from case-hardened steel (carburized to 58-62 HRC). Pins are centerless ground to h6 tolerance. Step chain sprockets are machined from cast iron or steel with hardened teeth. Chinese chain manufacturers (e.g., in Zhejiang) produce escalator chains to EN 115 standards.
The handrail drive consists of rollers, pulleys, and tensioning mechanisms. Machined parts include:
Drive roller drums (aluminum or steel, turned and rubber coated).
Tensioner housing (cast or machined aluminum).
Guide rollers (nylon or polyurethane with steel bearings).
Tolerances for handrail drive rollers: OD tolerance h7, surface finish Ra 1.6μm for rubber bonding.
Step pallets (the moving stair plates) are aluminum extrusions. They are cut to length, milled for riser connections, and drilled for axle holes. Chinese extrusion houses with CNC machining lines produce step pallets in high volume.
These are the most critical safety devices on an elevator. They must work when needed, potentially after years of inactivity.
A governor is a centrifugal device that triggers the safety gear if the elevator overspeeds. Machined parts include:
Governor sheave (grooved wheel) – steel, turned and balanced.
Flyweights and springs – precision machined steel.
Trigger mechanism (linkage) – stainless steel, milled and drilled.
Tolerances on flyweight pivot holes: ±0.02mm, surface finish Ra 0.8μm.
The safety gear clamps onto the guide rails to stop the car. Safety gear components include:
Wedge blocks (cast iron or steel, machined with inclined surfaces).
Roller holders (machined from steel plate).
Linkage arms (steel, drilled and reamed for pins).
All safety parts are 100% inspected and often require third-party certification (e.g., TÜV, Liftinstituut). Chinese suppliers can provide EN 81-20 compliant safety gear parts.
Buffers are installed at the bottom of the hoistway to absorb impact. Buffer components include guide tubes, pistons, and springs. Machined parts: cylinder tubes (honed ID, H8), piston rods (ground and chrome plated).
Structural steel (Q235, Q345): Car frames, brackets, counterweights. Machined and then painted or powder coated.
Cast iron (HT250, QT500): Brake calipers, traction machine housings, sheaves. Good damping, machinable.
Aluminum 6061/6063: Door panels, handrail rollers, step pallets. Lightweight, anodizable.
Steel 4140, 4340: Traction machine shafts, governor parts. Quenched and tempered (28-35 HRC).
Case-hardening steel (20MnCr5, 8620): Escalator chain pins, safety gear pins. Carburized to 58-62 HRC.
Bronze (C93200, C95400): Guide rail shoes, wear pads, bushings. Machined with oil grooves.
Nylon (PA6, PA66): Roller wheels, slide blocks. CNC machined from cast stock.
Surface treatments:
Zinc plating (yellow or clear): For steel brackets, bolts, small parts (salt spray 72-240 hours).
Powder coating: For car frames, door panels, covers. Durable, thick (60-120μm).
Anodizing (Type II): For aluminum parts (door panels, handrail components).
Hard chrome plating: For hydraulic buffer piston rods and guide shafts.
Specify: "Steel bracket: zinc plating 8μm min, yellow chromate, salt spray 120 hours."
Elevator components are governed by codes (EN 81, ASME A17.1, GB 7588). Chinese suppliers should provide:
Material certifications (MTRs, hardness reports).
Dimensional inspection reports (CMM or hand gauges).
Non-destructive testing (MT, UT for critical parts like safety gears).
Welding inspection (visual, ultrasonic for car frames).
Coating thickness and adhesion test (for powder coating and zinc plating).
Functional test reports (e.g., governor tripping speed test).
Some Chinese shops have TÜV or Liftinstituut product certification for safety components. Ask for certificates.
Step 1: Verify elevator industry experience. Ask for references from known OEMs (Otis, KONE, Schindler, or Canny, SJEC). A shop that has made safety components is preferred.
Step 2: Check machining capacity for large parts. For car frames: large traveling column milling machines (work envelope >5m). For sheaves: large CNC lathes (swing >500mm).
Step 3: Evaluate coating capabilities. In-house zinc plating or powder coating? Can they handle large parts (car frames)? Powder coating lines with ovens >5m length are needed.
Step 4: Assess quality and certification. Do they have EN 1090 (steel structures) or welding certifications? Can they perform MT and UT? Ask for a sample FAIR.
Step 5: Order a trial part – e.g., a guide rail bracket or a door hanger. Inspect dimensions, coating, and fit. Then move to more critical components like a safety gear or sheave.
Clusters: Jiangsu (Suzhou, Wuxi) – home to many elevator OEMs; Zhejiang (Huzhou, Ningbo) – component suppliers; Shanghai – large elevator engineering firms.
Elevator and escalator parts are produced in medium to large volumes (1,000-100,000 pieces/year). Typical pricing:
Guide rail bracket (steel, powder coated): $2-5
Door hanger bracket (aluminum, machined, anodized): $3-8
Traction sheave (cast iron, grooved, balanced): $50-150 (depending on diameter)
Governor sheave assembly (complete): $30-60
Escalator step chain (per meter): $20-40
Lead times: For existing parts, 4-6 weeks for first article, 3-5 weeks for production. For new castings or forgings, add 8-12 weeks. Coating adds 1-2 weeks. Shipping: sea 30-45 days, air 3-7 days.
MOQ: For custom brackets, 1,000-5,000 pieces; for safety components, lower MOQ (100-500) due to certification needs.
Guide rail bracket holes misaligned – difficult to install on site. Prevention: specify hole positions relative to building attachments; use jig drilling or CNC with fixture; require first article assembly test.
Door drive roller premature wear – noise. Prevention: specify roller material (e.g., polyurethane with hardness 70-80 Shore A) and bearing precision (e.g., ABEC 1).
Sheave groove roughness causing rope slip or wear. Prevention: specify surface finish Ra 1.6μm on grooves; use form tool with polished insert; inspect with profilometer or groove gauge.
Paint peeling on car frames. Prevention: require shot blasting before powder coating, and coating thickness check (80-120μm). Cross-hatch adhesion test.
Safety gear wedge stuck after years of non-use. Prevention: specify protective coating (zinc plating plus oil) and test for operation under load. Supplier should provide corrosion protection plan.
Machine room-less (MRL) elevators. Compact gearless machines require more precise machining of frames and sheaves with tighter clearances.
Digital monitoring and IoT integration. Machined pockets for sensors and transmitters are being added to sheaves, governors, and buffers.
Lightweight materials (aluminum, composites). Car frames and door panels are moving to aluminum extrusions and CNC-machined composites to reduce weight and energy consumption.
Green coatings. Powder coating replaces liquid paint; zinc-nickel replaces hexavalent chrome plating to meet environmental regulations.
Automated welding and inspection. Robotic welding lines with in-line dimensional checking (laser scanning) are becoming common in Chinese frame shops.
Safe, reliable vertical transportation depends on precision-machined elevator components and escalator parts. China's CNC machining industry, clustered around major OEMs, produces car frames, door drives, traction sheaves, governors, safety gears, and step chains that meet global safety standards (EN 81, ASME A17.1). By selecting suppliers with experience in elevator components, robust quality control (including NDT and coating verification), and the ability to handle large parts, global buyers can source cost-effective, high-quality components. Start with a trial of a non-critical bracket, verify surface finish and dimensions, then progress to safety-critical parts with third-party certification.
Ready to source precision CNC machined elevator and escalator components from China? Send us your drawings and specifications. We'll connect you with manufacturers experienced in producing parts for leading global lift brands, with full certification support. Free DFM feedback and quoting available.
A: Case-hardened alloy steel (e.g., 20MnCr5 or 8620) heat-treated to 58-62 HRC on the surface and 35-45 HRC core. The pin is centerless ground to h6 tolerance, and often has a grease groove. Chinese chain manufacturers follow EN 115 or ISO 14713 standards.
A: Yes, some have TÜV product certification for their safety components. Ask for a copy of the certificate. For custom designs, the buyer must arrange certification, but the shop can produce to certified drawings. Many prefer to supply components to OEMs who do final assembly and certification.
A: Typically Ra 1.6μm (as-machined with a form tool). For high-speed elevators (≥2.5 m/s), Ra 0.8μm may be specified to reduce rope wear. The groove profile (U or undercut) is critical; it is measured with a groove gauge or optical comparator.
A: Many large fabricators hold EN 1090 (EXC2 or EXC3) for steel structures, as well as ISO 3834. Ask for their welding certificate and the qualification of their welders (e.g., AWS or ISO 9606).
A: Pattern making 4-6 weeks, casting lead time 4-8 weeks, then machining 2-3 weeks, balancing 1 week. Total 12-18 weeks for first article. Production batches after that 4-6 weeks.
A: Specify H7 tolerance and require a bore gauge or CMM report. The bore surface finish should be Ra 1.6μm. For high-volume production, the supplier should use a reamer or fine boring tool and in-process air gauging.
A: Polyurethane rollers are usually cast-molded, not CNC machined. However, the steel core is machined on a CNC lathe, and the polyurethane is injection molded around it. Ask for complete assembly and dynamic balance testing.
A: For indoor elevators, 72 hours to white rust is common. For outdoor or humid environments (e.g., swimming pools, coastal areas), specify 240 hours or use zinc-nickel plating. Ask for salt spray test report.
